Internal Block Diagrams

ESL

In ESL, the hierarchical structure of a system is created by defining components within components. For example, the pump is a component of the world, and the drive-mechanism consists of three subcomponents: power-source, motor and power-switch. All components all have their own parameters. The purpose of a component with respect to other components is defined using goal-requirements.

world.esl
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
# Specification of a drive-mechanism driving a pump.
define type
  mechanical-energy-flow is a real with unit Nm
  electrical-energy-flow is a real with unit W
  liquid-material-flow is a real with unit L/s
  energy-potential is a real with unit Wh
  control-signal is a boolean
  distance is a real with unit m
  spatial-measure is a distance of at least 0.0 [m]
  efficiency is a real  of at least 0.0 and at most 1.0


define verb
  provide to
  convert into
  send to


define relation
  battery-efficiency-model
    relating parameters
    * potential is an energy-potential
    * output is an electrical-energy-flow


world
  variables
    torque is a mechanical-energy-flow #< Comments on variable torque.
    water-flow is a liquid-material-flow
    drive-length is a spatial-measure
    pump-length is a spatial-measure



  components
    pump is a CentrifugalPump with arguments
      * torque
      * water-flow
      * pump-length

    drive-mechanism is an ElectricalDriveMechanism with arguments
      * torque
      * drive-length



  comments
    pump #< Can be sourced by manufacturer XYZ.
         #< Part number CFG.PMP.0.1


  goal-requirements
    provide-torque: drive-mechanism must provide torque to pump



  design-requirements
    min-water-flow: water-flow must be at least 1.0 [L/s]



  design-constraints
    dc-drive-length: drive-length must be equal to pump-length

  need
    IP68: drive-mechanism must be IP68 compliant


define component CentrifugalPump
  parameters
    torque is a mechanical-energy-flow
    water-flow is a liquid-material-flow
    length is a spatial-measure property

  transformation-requirements
    convert-torque: must convert torque into water-flow


define component ElectricalDriveMechanism
  parameters
    torque is a mechanical-energy-flow
    length is a spatial-measure property

  variables
    power-potential is an energy-potential
    power is an electrical-energy-flow
    motor-control-signal is a control-signal

  transformation-requirements
    convert-power-potential: must convert power-potential into torque


  components
    power-source is a Battery with arguments
      * power-potential
      * power

    motor is a BrushlessMotor with arguments
      * power
      * torque

    power-Switch is a Switch with arguments
      * motor-control-signal


  goal-requirements
    provide-power: power-source must provide power to motor
    send-control-signal: power-Switch must send motor-control-signal to power-source


  behavior-requirements
    toggle-power:
      case on:
        when
          * c1: motor-control-signal is equal to True [-]
        then
          * r1: power must be at least 300 [W]
      case off:
        when no other case applies
        then
          * r2: power must be equal to 0 [W]


define component BrushlessMotor
  parameters
    power is an electrical-energy-flow
    torque is a mechanical-energy-flow

  variables
    conversion is an efficiency

  transformation-requirements
    convert-power: must convert power into torque with subclauses
      * s1: conversion must be at least 0.8


define component Battery
  parameters
    power-potential is an energy-potential
    power is an electrical-energy-flow

  transformation-constraints
    convert-potential: does convert power-potential into power


  relations
    efficiency-model: battery-efficiency-model
      relating arguments
      * power-potential
      * power


define component Switch
  parameters
    motor-control-signal is a control-signal
goal requirement
1
2
3
  goal-requirements
    provide-power: power-source must provide power to motor
    send-control-signal: power-Switch must send motor-control-signal to power-source
parts world
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
world
  variables
    torque is a mechanical-energy-flow #< Comments on variable torque.
    water-flow is a liquid-material-flow
    drive-length is a spatial-measure
    pump-length is a spatial-measure



  components
    pump is a CentrifugalPump with arguments
      * torque
      * water-flow
      * pump-length

    drive-mechanism is an ElectricalDriveMechanism with arguments
      * torque
      * drive-length
parts ElectricalDriveMechanism
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
define component ElectricalDriveMechanism
  parameters
    torque is a mechanical-energy-flow
    length is a spatial-measure property

  variables
    power-potential is an energy-potential
    power is an electrical-energy-flow
    motor-control-signal is a control-signal

  transformation-requirements
    convert-power-potential: must convert power-potential into torque


  components
    power-source is a Battery with arguments
      * power-potential
      * power

    motor is a BrushlessMotor with arguments
      * power
      * torque

    power-Switch is a Switch with arguments
      * motor-control-signal

SysML

In SysML, the internal structure of a system, meaning their parts, purpose and properties, is defined using Internal Block Diagrams (IBD).

The component drive-mechanism can be mapped to a block, with parts power-source, motor, and power-switch. The relation between the parts is retrieved from the goal-requirements.

For example, take the following goal-requirement:

\[ \underbrace{\text{power-source}}_{\text{sender}} \quad \text{must } \quad \underbrace{\text{provide }}_{\text{connector}} \quad \underbrace{\text{power }}_{\text{flow}} \quad \text{to } \quad \underbrace{\text{motor }}_{\text{receiver}} \tag{1} \]

The part power-source sends (has as output) the flow power, which is received by the part motor. This connection is represented by connectors. The allowable in- and output is represented by ports.

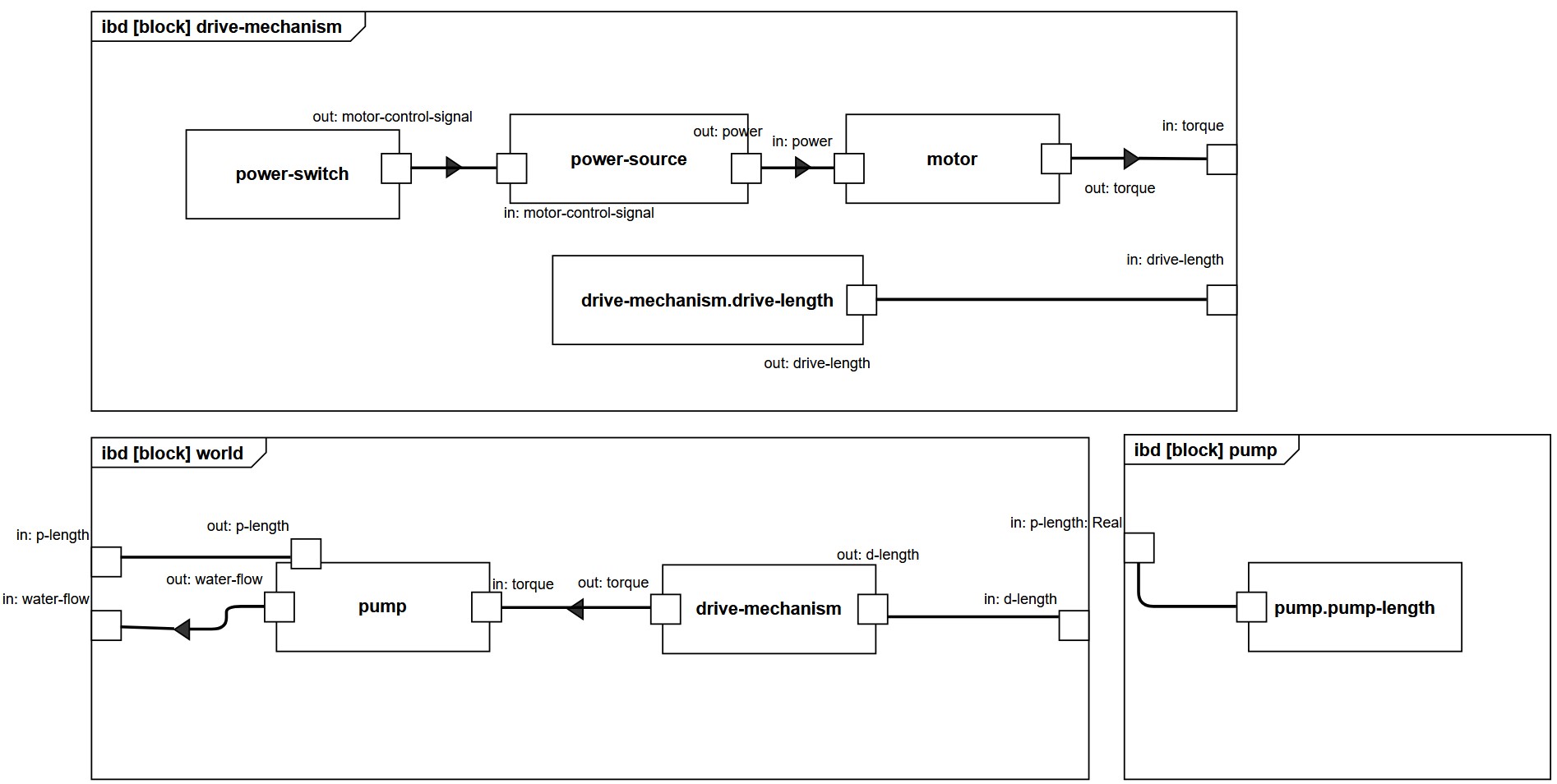

pumpmodule ibd

Internal Block Diagrams of the world, pump and drive-mechanism. The connector with the arrow is used to depict flows.
  • The IBD world shows how the blocks pump and drive-mechanism are connected. Note that for each proxy port the direction and allowable flows are defined, and that they match the ports and flow properties in the BDD.
  • The IBD drive-mechanism shows how the blocks power-source, motor and power-source are connected using object flows and how the ValueProperty drive-length is connected to a proxy port that can send the information of drive-length to the outside of the block.
  • The IBD pump shows how the ValueProperty pump-length is connected to a proxy port that can send the information of pump-length to the outside of the block. Internally there is no flow of objects.
